Gondola Shelving Down Light for Light Boxes
Enhance your retail display with the Gondola Shelving Down Light for Light Boxes, featuring 8W dimmable LED lighting, 750–800 lumens and selectable 3000K, 4000K and 6000K colour temperatures. Measures 95mm in diameter and 60mm high, with a 90mm cut-out.
Code: SMDL
$6.80
Delivery Information
Depending on the quantity and weight of your entire order, we have the following freight options available:
– Direct Freight
– Pick up from our warehouse
Please note: An additional $88 fee (invoiced separately) applies to slatwall orders of two boards or fewer and to orders requiring a tailgate drop-off. Thank you for your understanding.
Learn more
Like it? Share it
Description
The Gondola Shelving Down Light for Light Boxes is an 8W dimmable LED down light designed for use with compatible gondola shelving light boxes. Delivering 750–800 lumens, it provides illumination to support a clear and organised retail display. Its white circular trim creates a neat finish around the light face, complementing the surrounding light box and shelving arrangement.
Featuring selectable colour temperatures of 3000K, 4000K and 6000K, this down light allows you to choose a warmer, neutral or cooler lighting tone to suit your display. Its dimmable functionality offers brightness adjustment when used with a compatible dimmer, while a colour rendering index greater than 82 helps display product colours clearly. These features provide flexibility when coordinating your shelving illumination with the lighting in your retail space.
Measuring 115mm in overall diameter and 60mm high, the fitting requires a 90mm cut-out within a compatible installation. It operates on 220–240V at 50Hz, with a power factor greater than 0.9, and features side mounting clips and an attached connection lead. With an IC-4 classification and a 1-year warranty, this gondola shelving down light is an option for completing a new light box setup or replacing a suitable existing fitting.
Key Features:

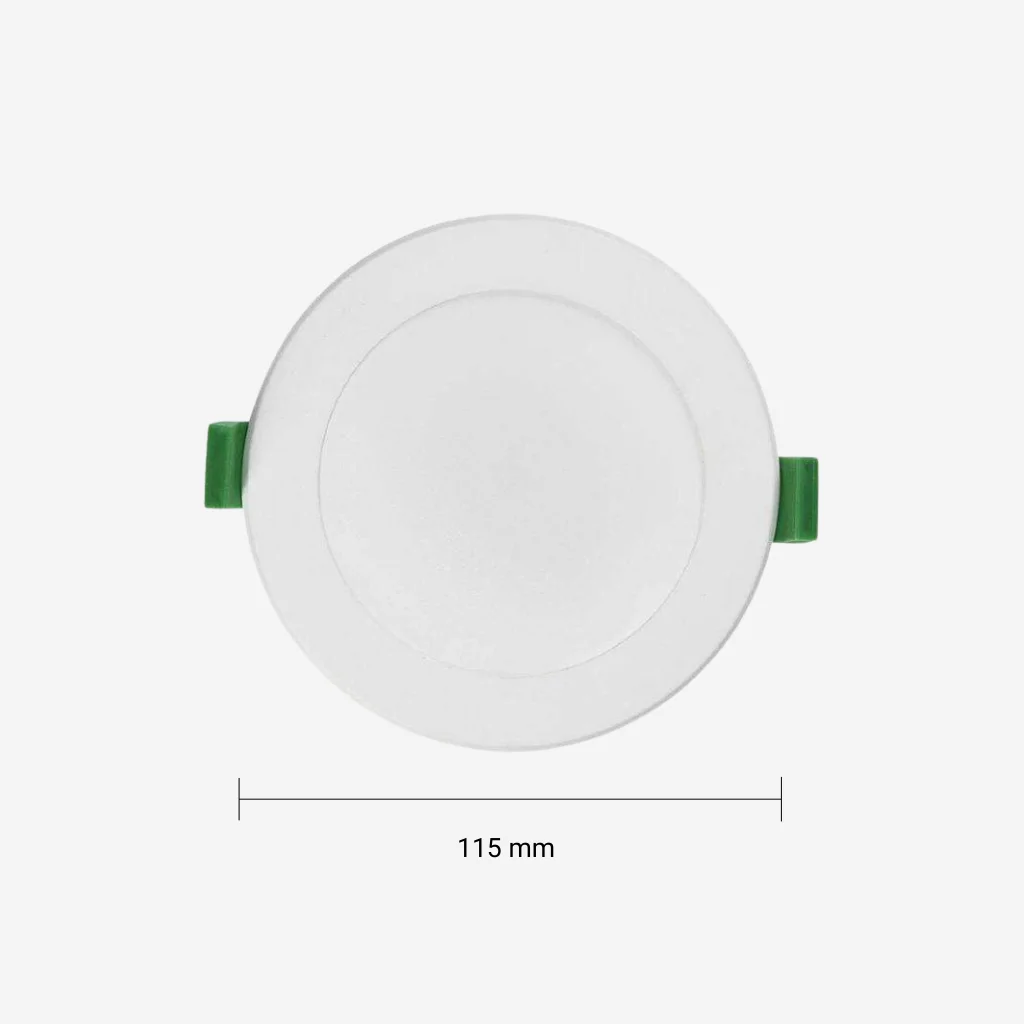

- Overall diameter: 115mm
- Height: 60mm
- Cut-out diameter: 90mm
- Trim colour: White
- Warranty: 1 year
- Dimmable: Yes, with a compatible dimmer

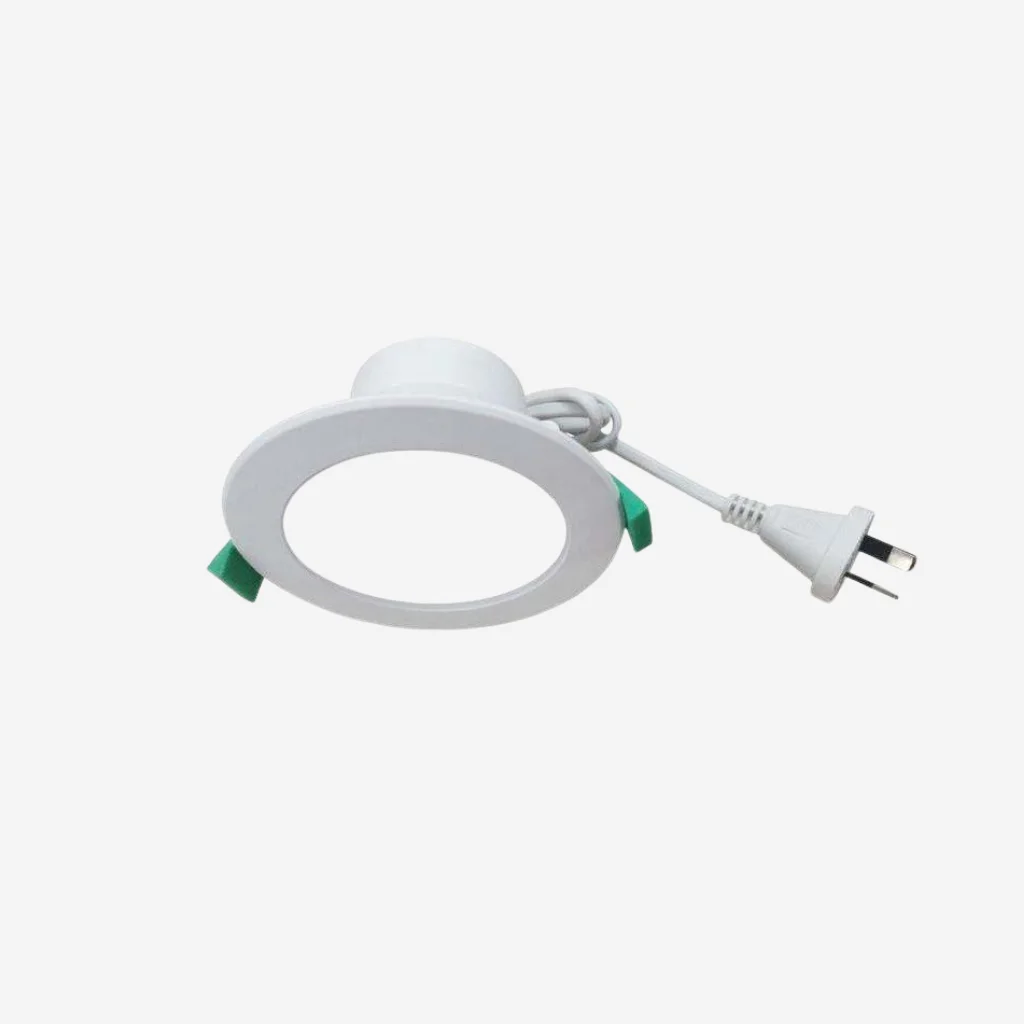

- Side mounting clips and an attached connection lead
- Designed for compatible gondola shelving light boxes
Specifications:
- Power: 8W LED
- Light output: 750–800 lumens
- Colour temperatures: Selectable 3000K, 4000K and 6000K
- Voltage: 220–240V, 50Hz
- Colour rendering index (CRI): Greater than 82
- Power factor (PF): Greater than 0.9
- IC type: IC-4
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 12 × 12 × 7.5 cm |
| Colour | White |
| Diameter | 115 |
| Height | 60mm |
